New LRF Module Announcement from Eyoung: 3000m Range on Vehicle for Drone Gimbal

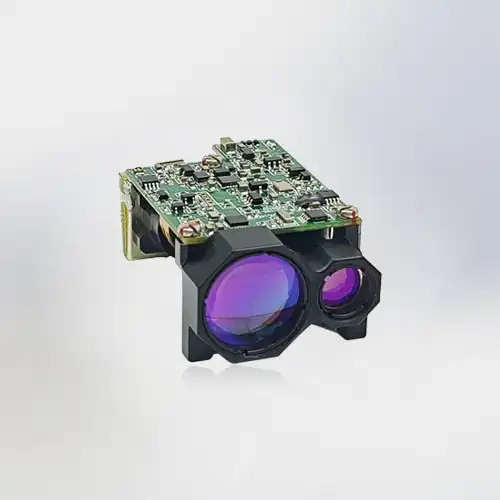

Recently, Eyoung is proud to announce the latest upgrade to our 3-kilometer laser rangefinder module, now featuring a more compact and lightweight design. This enhancement not only maintains the high precision and reliability our customers have come to expect, but also significantly reduces the module’s size and weight, making it easier to integrate into a variety of applications. Whether for industrial use, outdoor exploration, or advanced technological systems, the new module offers improved portability and convenience without compromising on range performance. Experience the future of laser rangefinding with our upgraded, state-of-the-art module.
Comparison of Technical Specifications
|
LRF Model |
EYC-15A |
EY-3001A |
|
Laser Wavelength |
1535±5nm |
1535±10nm |
|
Maximum Range |
≥3000m(on 2.3m×4.6m vehicle) |
3000m(on vehicle) |
|
Minimum Range |
≤15m |
15m |
|
Range Accuracy |
±1m |
±2m |
|
Range Frequency |
Single time, 1~10Hz |
Single time, 1Hz, 5Hz |
|
Dimension(L×W×H) |
≤48mm×30.5mm×21mm |
≤50mm×36.5mm×24mm |
|
Weight |
32g±1g |
≤58g |
|
Communication Interface |
TTL |
RS422/TTL |
|
Operating Voltage |
4.5V～16V |
4.8～8.5V |
|
Standby Power Consumption |
≤0.6W |
≤0.5W |
|
Operating Temperature |
-40℃～+70℃ |
-40℃～+60℃ |
Key Differences:
Size and Weight: The EYC-15A is significantly smaller (≤48mm×30.5mm×21mm) and lighter (32g±1g) compared to the EY-3001A (≤50mm×36.5mm×24mm and ≤58g).
Range Accuracy: The EYC-15A offers better accuracy (±1m) compared to the EY-3001A (±2m).
Range Frequency: The EYC-15A supports a wider range of frequencies (1~10Hz) compared to the EY-3001A (Single time, 1Hz, 5Hz).
Operating Voltage: The EYC-15A has a broader operating voltage range (4.5V～16V) compared to the EY-3001A (4.8～8.5V).
This comparison highlights the advancements in the new 3km Laser Range Finder Module, particularly in terms of size, weight, accuracy and operational flexibility.
