Custom Mount Laser Rangefinder Module
Custom Mount Laser Rangefinder Module Introduction
In the world of precision optics and technology, having accurate distance measurement is crucial. That's where our Custom Mount Laser Rangefinder Module comes in. This compact, high-performance device is designed to provide reliable distance information with just a simple laser pulse. Whether you're a manufacturer looking to integrate precise ranging capabilities into your products or an enthusiast seeking a top-of-the-line rangefinder, this module is the perfect solution.
Product Advantages
Unmatched Accuracy: With a range accuracy of up to ±1m (≤300m) and ±2m (＞300m), you can trust the measurements delivered by this module.
Easy Integration: The module communicates via UART-TTL interface, making it easy to integrate into a wide range of systems and applications.

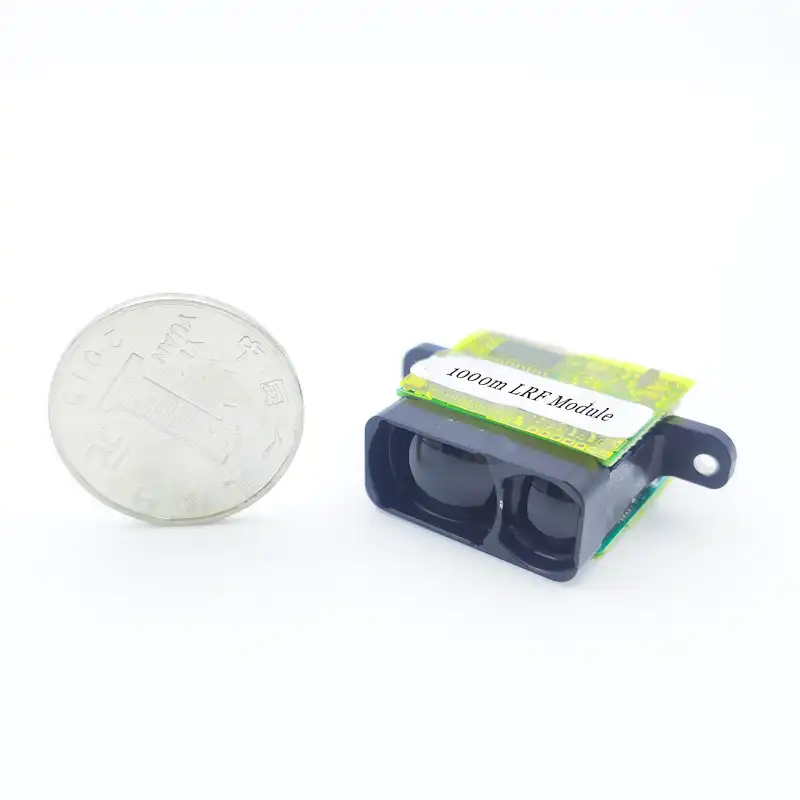

Compact and Lightweight: Measuring only 39.4×26×13.5mm and weighing less than 14g, it can be mounted almost anywhere without adding significant bulk.
Safe and Reliable: Operating at a safe 905nm laser wavelength (Class 1), this rangefinder prioritizes user safety without compromising performance.
Technical Features
|
Item |
Parameter |
|
Laser wavelength |
905nm (Class 1) |
|
Max. range capability |
≥1000m (to big target) |
|
Min. range capability |
≤3m |
|
Range accuracy |
≤±1m（≤300m），≤±2m（＞300m） |
|
Accuracy rate |
≥99% |
|
False alarm rate |
≤1% |
|
Range frequency |
1Hz |
|
Dimension |
39.4×26×13.5mm (L×W×H) |
|
Weight |
≤14g |
|
Communication type |
UART-TTL(3.3V) |
|
Power supply |
3.3V（can be adjusted to 3.3V～5V） |
|
Standby power consumption |
≤0.6W |
|
Average power consumption |
≤0.8W |
|
Testing peak power consumption |
≤1.35W |
|
Power on range-finding response time |
≤100ms |
|
Working temperature |
-20℃～60℃ |
Product Application
The Custom Mount Laser Rangefinder Module is incredibly versatile and can be used in a variety of applications, including:
LRF Ballistic Calculating Scopes: Provide precise distance measurements for long-range shooting.
Hunting Laser Rangefinders: Help hunters accurately gauge distances to targets.
Laser Range-Finding Binoculars: Enhance outdoor viewing experiences with distance measurement.
UAV Gimbal Cameras: Enable precise distance measurement for aerial photography and videography.
Quality Control and Safety Standards
At Hainan Yiyang Technology Co., Ltd., we take quality and safety seriously. Our core technical team, comprised of first-class industry experts, ensures that every module undergoes rigorous testing and adheres to strict safety standards. The 905nm laser wavelength is classified as Class 1, making it safe for direct human eye exposure.
FAQ
Q: What is the maximum range of the Custom Mount Laser Rangefinder Module?
A: The module can accurately measure distances up to 1000 meters to large targets.
Q: Is the laser safe for human eyes?
A: Yes, the laser operates at a safe 905nm wavelength and is classified as Class 1, making it safe for direct human eye exposure.
Q: How easy is it to integrate this module into my product?
A: The module communicates via UART-TTL interface, which is widely supported and easy to integrate into various systems.
Contact Us
For more information or to discuss your specific needs, please don't hesitate to contact us at sales@eyoungtek.com. Our team of experts is ready to assist you in finding the perfect solution for your application.
Let the Custom Mount Laser Rangefinder Module take your projects to the next level with precision distance measurement you can rely on.
