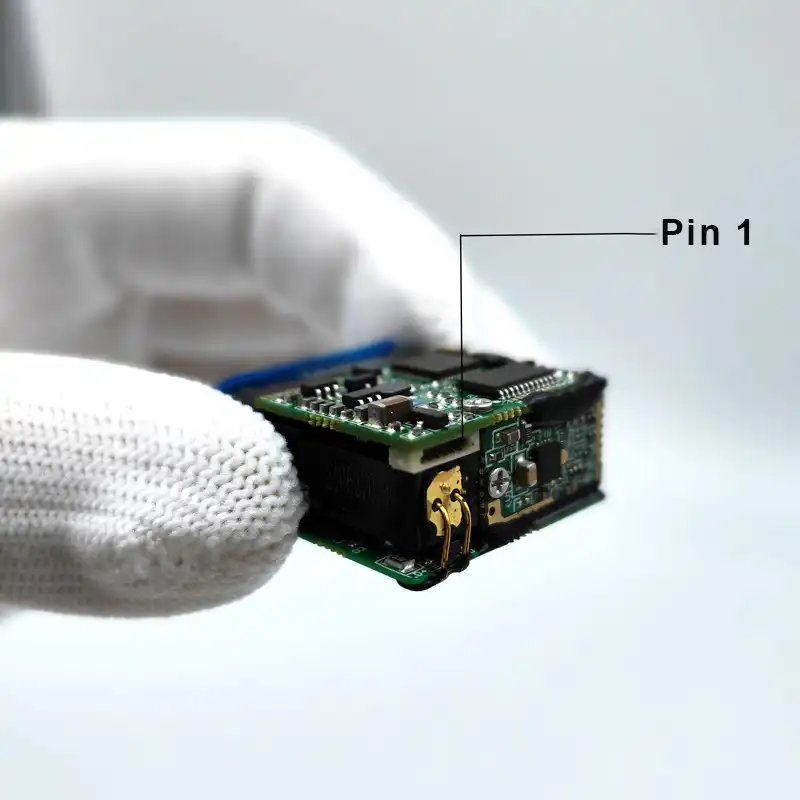

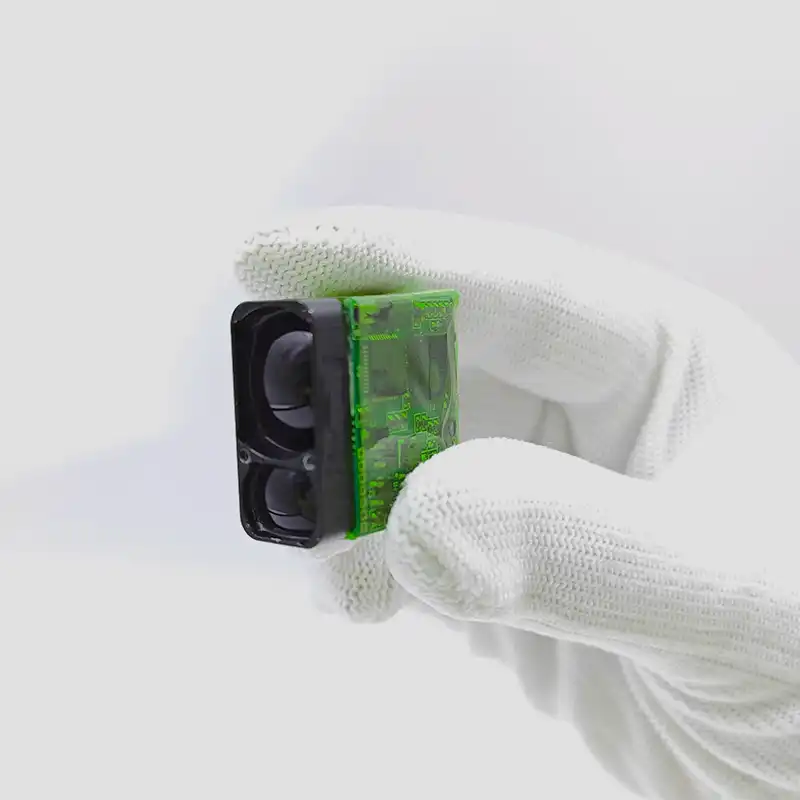

Hunting Rangefinder Module
Weighs only 10 grams;
Customization for operating voltage;
Developed with 905nm semiconductor laser;
Extremely compact size for portable system integration;
High performance for short distance measurement within 1500m
Hunting Rangefinder Module Introduction

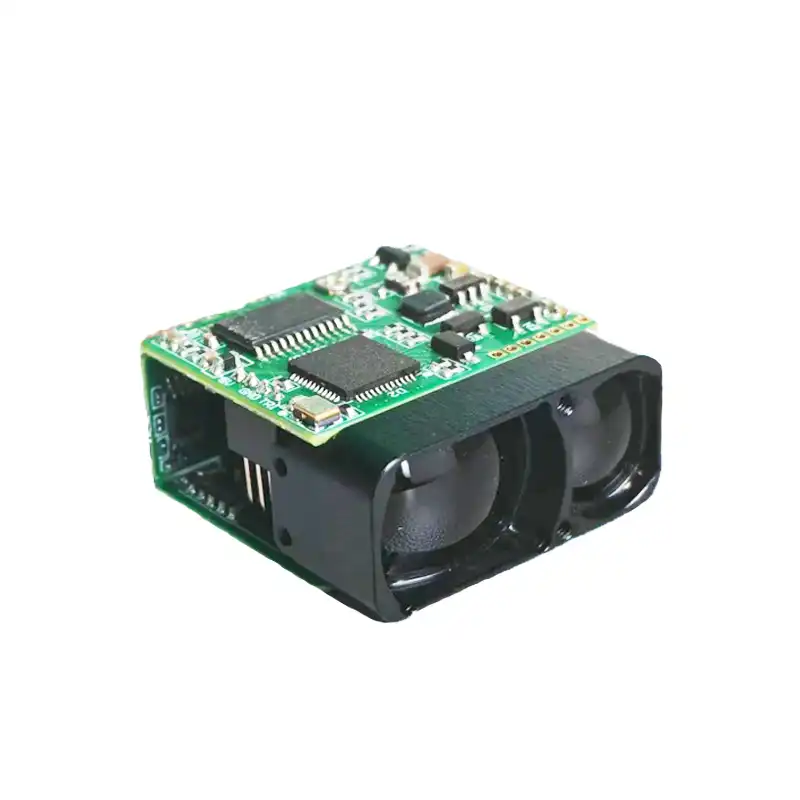

The Hunting Rangefinder Module is a sophisticated laser rangefinding solution hailing from China, designed for those who pursue high precision and reliability of distance measurement in their outdoor adventures. This compact module, featuring a cuboid configuration and a diminutive size of just 25.8mm×24.6mm×12.8mm, is easy to be integrated into various equipment setups. It is powered by a safe LD (Laser Diode) emitting at a wavelength of 905±10nm, which is certified CE for safety, ensuring it meets rigorous standards for use across the global market. With a measuring range of 5 to 1500 meters and a ranging accuracy of ±1m, this module is capable of delivering high-resolution measurements down to 0.1m.
The module is crafted with a lightweight aluminum housing, tipping the scales at a mere 10±0.5g, making it one of the lightest options available for hunters and outdoor ethusiasts. It operates within a voltage range of 3V to 5V and boasts an impressively power consumption lower than 1W in standby mode, with the ability to achieve zero power consumption when powered off.
Specification
|
parameter |
value |
|
|
Laser wavelength |
905nm |
|
|
Max. measurement distance (m) |
Large target |
10～1500 |
|
|
Vehicle（2.3m×4.6m） |
10～1500 |
|
|
Human（0.5m×1.7m） |
10～1000 |
|
Min. measurement distance (m) |
5 |
|
|
Precision (m) |
±1m |
|
|
Size (L×W×H) (mm) |
≤25.8mm×24.6mm×12.8mm |
|
|
Weight (g) |
≤10±0.5g |
|
|
Ranging frequency (Hz) |
Single time、1、2 |
|
|
Accuracy rate |
≥98% |
|
|
False alarm rate |
≤1% |
|
|
Communication port |
TTL |
|
|
Supply voltage (V) |
2.5～3.5 |
|
|
Standby power consumption (W) |
≤1, power off to achieve zero standby power consumption |
|
|
Operating temperature |
-20～+50 |
|
Working Principle
Laser Emission: The module emits a pulse of laser light towards the target. This laser pulse travels at the speed of light, ensuring quick interaction with the target.
Time-of-Flight Measurement: The time it takes for the laser to reflect back from the target is captured. This time-of-flight measurement is crucial for determining the distance to the target.
Distance Calculation: Using the known speed of light, the module calculates the distance. This is achieved through the formula:
Continuous Operation: The module allows for continuous scanning to track moving targets. This feature enables the rangefinder to update the distance readings in real-time as the target moves, providing dynamic and accurate tracking.
Hunting Rangefinder Module Function
Distance Measurement: The core function is to measure the distance to a target, typically in yards or meters. This is crucial for accurate shooting.
Angle Compensation: Some rangefinders calculate the true horizontal distance by taking into account the angle of elevation or declination. This is helpful when hunting in hilly or mountainous terrain.
Speed Measurement: Advanced models can measure the speed of a moving target, which can be beneficial for tracking animals in motion.
Magnification: Many Hunting Rangefinder Module include optical magnification, allowing hunters to zoom in on distant targets for better identification and distance measurement.
Scan Mode: This function continuously updates the distance measurement as the hunter scans across different targets, useful for tracking moving animals or scanning an area.
Weather and Light Adaptation: High-end models may adjust readings based on environmental conditions like light levels, fog, or rain to ensure accuracy.
Target Priority Modes: These allow hunters to prioritize the nearest or farthest target in the viewfinder, which can be useful in cluttered environments.
Application
a) Handheld photoelectric device;
b) UAV gimbal mount;
c) Scope Aiming and targeting;
d) Other scenario with ranging requirements.
Operation and Maintenance
Powering On: Simple switch to activate the module.
Maintaining Accuracy: Regular zeroing and calibration checks.
Battery Replacement: Easy access for battery replacement when needed.
Cleaning: Use soft cloth and mild cleaning solutions to maintain optical clarity.
