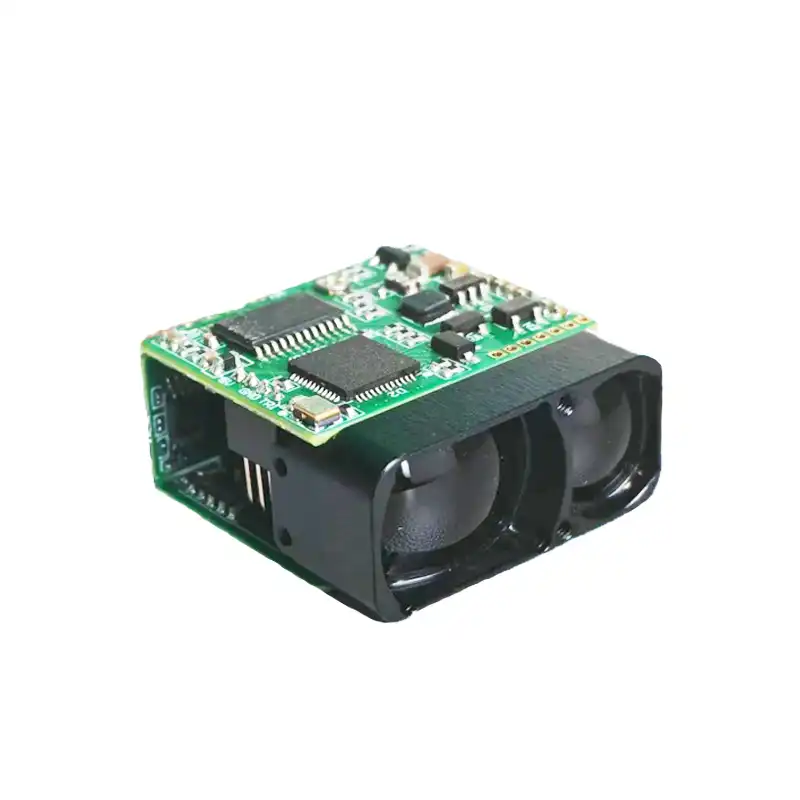

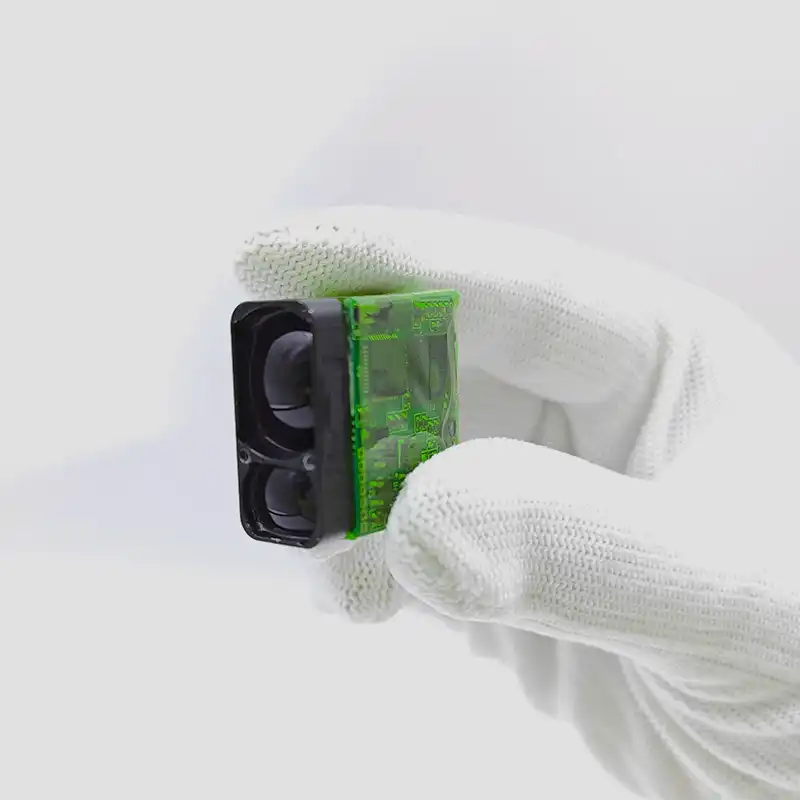

Compact Laser Rangefinder Module
Multiple installation mode for specific integration;
Operating voltage is customizable upon request;
It can be mounted in drone & UAV camera gimbals, handheld device like optical sight & scope and binoculars.
Introduction
The Compact Laser Rangefinder Module is a semiconductor laser rangefinder module with a compact, cuboid configuration, designed for emitting and receiving through a common aperture. Developed based on a 905nm semiconductor laser, this rangefinder ensures reliable distance measurement while significantly reducing the product's size and weight.This module features a laser diode (LD) type laser with a wavelength of 905±10nm, making it safe for human eyes.
It boasts a measurement range of 5 to 1500 meters with an accuracy of ±1 meter and a resolution of 0.1 meters. Operating at a voltage range of 3V to 5V, the module has a standby power consumption of 1W, and it can achieve zero power consumption in standby mode. The device is made from aluminum and has a compact, square design with dimensions of ≤25.8mm×24.6mm×12.8mm, and it weighs just 10±0.5g. This lightweight and small form factor make it ideal for applications requiring short-distance range measurement. It is manufactured in China and comes with CE certification, ensuring high-quality standards and safety.
Specification
Items |
value |
|
Laser wavelength |
905nm |
|
Maximum range (m) |
Large target |
10~1500 |
|
Vehicle(2.3m×4.6m) |
10~1500 |
|
Human(0.5m×1.7m) |
10~1000 |
Minimum range (m) |
5 |
|
Precision (m) |
±1m |
|
Dimension (L×W×H) (mm) |
≤25.8mm×24.6mm×12.8mm |
|
Weight (g) |
≤10±0.5g |
|
Ranging frequency (Hz) |
Single time、1、2 |
|
Accuracy rate |
≥98% |
|
False alarm rate |
≤1% |
|
Communication port |
TTL |
|
Supply voltage (V) |
2.5~3.5 |
|
Standby power consumption (W) |
≤1, power off to achieve zero standby power consumption |
|
Operating temperature(℃) |
-20~+50 |
Function
The Compact Laser Rangefinder Module serves a assortment of capacities that make it an irreplaceable apparatus for various applications requiring exact distance measurement. Here's an extended clarification of its center functions:
Laser Emission:
The module is prepared with a laser source that emanates a beat of laser light towards the target. This laser light is profoundly centered and voyages in a straight line, guaranteeing that the estimation is coordinated precisely at the target object.
Time-of-Flight Measurement:
Once the laser beat is radiated, the module's sensor captures the time it takes for the light to reflect back from the target. This reflection is recognized by the module's collector, which is synchronized with the laser emanation to degree the round-trip time of the laser pulse.
Distance Calculation:
Utilizing the rule that the speed of light is consistent, the module calculates the separate to the target by increasing half of the round-trip time by the speed of light. This calculation is performed with high accuracy, yielding an precise remove measurement.
Display of Readings:
After calculating the separate, the module presents the comes about on a connected upper computer screen. This permits clients to quickly see the measuring result value, making it simple to translate the information at a glance.
Continuous Operation:
The module is planned to work persistently, with its range frequency up to 2Hz, which means it can range twice in one second. This work is especially valuable for following moving targets or for applications that require continuous separate monitoring.
High-Precision Measurement:
With a tall level of precision, the module gives steady and dependable estimations. Its exactness is imperative for applications where indeed little blunders in remove estimation can have critical consequences.
Adaptability to Different Conditions:
The module is planned to perform well beneath different natural conditions, counting diverse lighting levels and climate conditions. This flexibility guarantees that it can be utilized viably in a wide run of settings.
User Interface and Control:
It regularly highlights an natural client interface that permits clients to set estimation parameters, select estimation modes, and control other operational viewpoints of the module.
Data Yield Options:
In expansion to the show, the module may offer different information yield choices, such as computerized signals or analog yields, to coordinated with other frameworks or for advance information processing.
Energy Efficiency:
The module is outlined to be vitality proficient, guaranteeing that it can work for amplified periods, which is especially advantageous for versatile or farther applications.
Safety Features:
Incorporating security highlights such as eye-safe laser and programmed power-down instruments, the module is outlined to secure clients and comply with security standards.
The Compact Laser Rangefinder Module is a confirmation to the integration of progressed innovation into a compact shape figure, advertising clients a capable instrument for remove estimation with ease of utilize, precision, and unwavering quality.
Operation and Maintenance
Installation: Follow the manufacturer's guidelines for proper installation to ensure accurate measurements.
Calibration: Periodic calibration is recommended to maintain the module's accuracy.
Routine Checks: Regularly inspect the module for any signs of wear or damage.
Cleaning: Use appropriate cleaning materials to maintain the clarity of the optical components.
Quality Control and Safety Standards
ISO Certification: The module is manufactured in compliance with ISO quality standards.
Safety Testing: Each module undergoes rigorous safety testing to meet global standards.
Environmental Testing: The module is tested for resistance to various environmental factors such as dust, moisture, and temperature fluctuations.
Quality Assurance: A multi-tiered quality assurance process ensures that each module meets the highest quality benchmarks.
Continuous Improvement: Feedback from customers and industry trends drives ongoing improvements in product design and manufacturing processes.
Application Fields
a) Handheld photoelectric device;
b) UAV mounting;
c) Target aiming and shooting in hunting activity;
d) Other scenario with ranging requirements.
