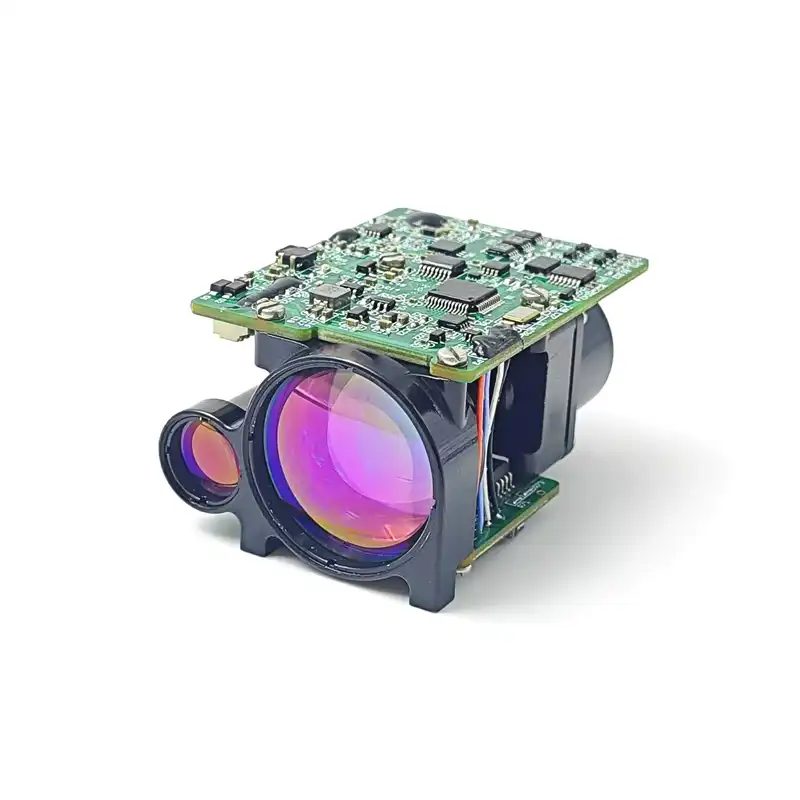

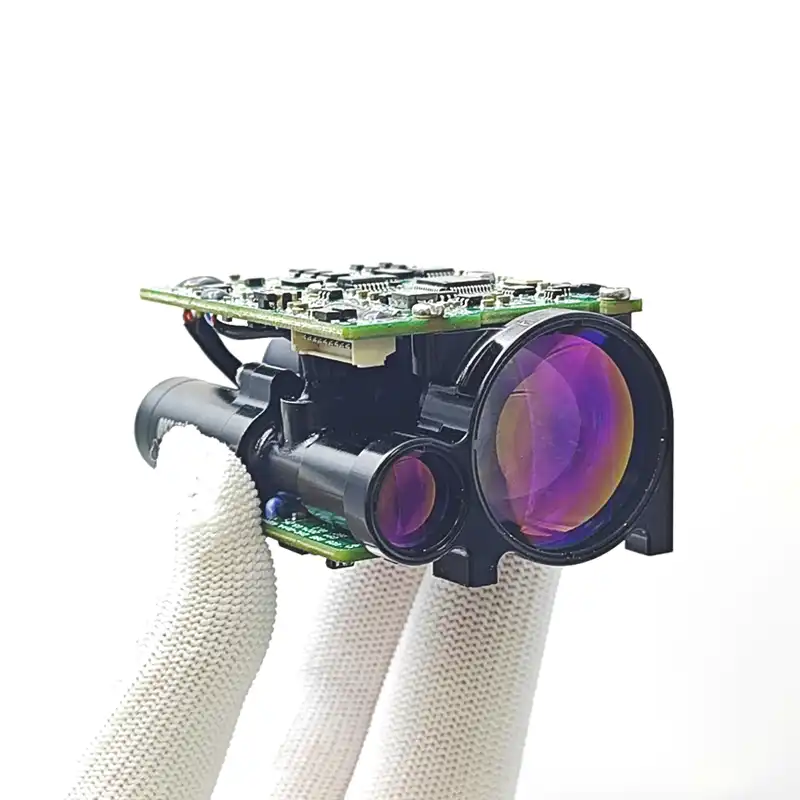

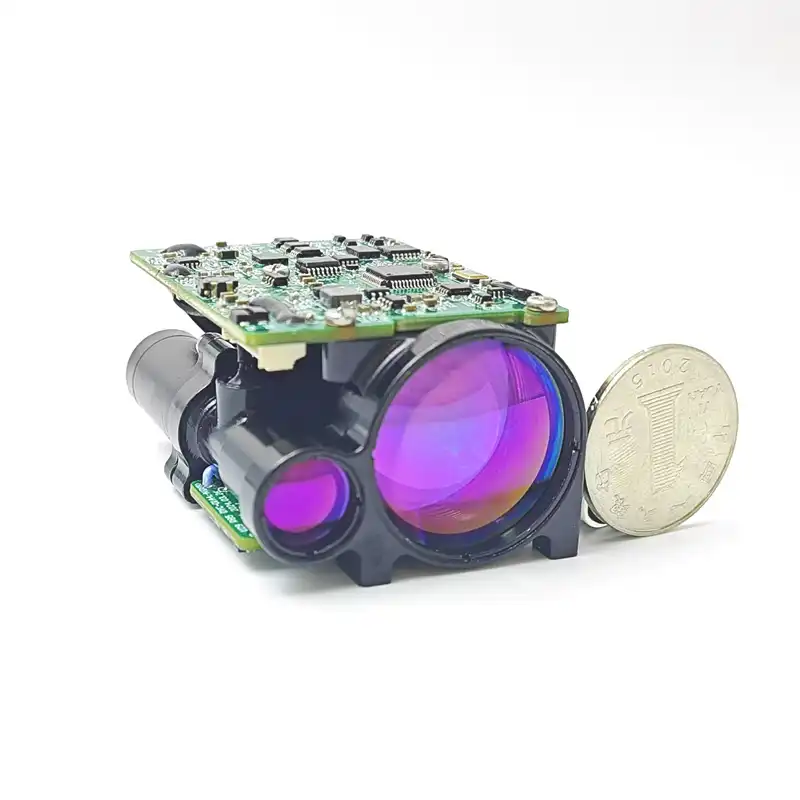

Powerful Laser Ranging Module
Support two targets detection;
Low false alarm rate ≤1%;
Wide operating temperature range;
Powerful rangefinding capability for vehicles up to 5000m;
It can be used in UAV gimbal camera for distance detection
Powerful Laser Ranging Module Introduction
If you're looking for a high-performance rangefinder that combines precision with versatility, you've come to the right place. Our Powerful Laser Ranging Module is designed to meet the challenging demands of various applications while ensuring accuracy and reliability. Let's dive into what makes this module a standout choice.
Product Advantages
The product offers several advantages that make it ideal for a wide array of applications:
Compact and Lightweight: With dimensions of just ≤61mm×43mm×32mm and a weight of ≤80g, this module is easy to integrate into different systems without adding significant bulk.
High Accuracy: Achieving an impressive ranging accuracy of ±1m, this module ensures precise measurements every time.
Low Power Consumption: Designed for efficiency, it features a standby power consumption of ≤1.8W and a power-off state that achieves zero standby consumption.
Durability: Built with an aluminum housing, the module is robust and can withstand harsh conditions, making it a reliable choice for various environments.
Technical Features
Let's explore the technical specifications that set our module apart:
|
Items |
Parameter |
|
|
Laser wavelength |
1535nm |
|
|
Maximum range (m) |
Large target |
8500 |
|
Vehicle（2.3m×4.6m） |
5300 |
|
|
Human（0.5m×1.7m） |
3000 |
|
|
Minimum range (m) |
50 |
|
|
Ranging accuracy (m) |
±1 |
|
|
Size (L×W×H) (mm) |
≤61×43×32 |
|
|
Weight (g) |
≤85 |
|
|
Ranging frequency (Hz) |
Single time、1、5 |
|
|
Accuracy rate |
≥98% |
|
|
False alarm rate |
≤1% |
|
|
Multiple target detection (pc) |
2 |
|
|
Communication port |
RS422 |
|
|
Supply voltage (V) |
12±2 |
|
|
Standby power consumption (W) |
≤1.8W, power off to achieve zero standby power consumption |
|
|
Operating temperature（℃） |
-40～+60 |
|
Product Applications
Our Powerful Laser Ranging Module is suitable for a diverse range of applications, including:
Handheld Photoelectric Devices: Its compact size and high accuracy make it ideal for portable devices that require precise ranging capabilities.
UAV Mounting: The module's lightweight design allows it to be easily mounted on UAVs, enhancing their navigation and targeting systems.
Small Pods: Perfect for integration into small pods used in surveillance and reconnaissance missions.
Other Ranging Requirements: Whether for industrial, research, or defense purposes, this module meets the needs of any application requiring accurate distance measurement.
Quality Control and Safety Standards
At Hainan Yiyang Technology Co., Ltd., we prioritize quality and safety. Our Powerful Laser Ranging Module is meticulously crafted to meet stringent industry standards, ensuring reliable performance and user safety:
Eye Safety Compliance: Operating within the eye-safe wavelength band, our module poses no risk to users, even during prolonged use.
Robust Testing: Each unit undergoes rigorous testing to guarantee shock resistance, high reliability, and stable performance, even in extreme conditions.
FAQ
Q: What is the warranty period for the Powerful Laser Ranging Module?
A: The module comes with a 1-year warranty, providing peace of mind and assurance of quality.
Q: Can the module be customized for specific needs?
A: Yes, we offer OEM and ODM customization options to tailor the module to your unique requirements.
Q: What is the false alarm rate of the module?
A: The module has a false alarm rate of ≤1%, ensuring high accuracy in detection.
Q: What is the operating temperature range for the module?
A: The module operates efficiently in temperatures ranging from -40°C to +60°C.
Contact Us
The Powerful Laser Ranging Module by Hainan Yiyang Technology Co., Ltd. represents a blend of cutting-edge technology and practical design, making it an excellent choice for those in need of accurate and reliable distance measurement. Whether you're in defense, industrial, or any other field requiring precision, this module is engineered to deliver superior performance. Reach out to us today to learn more and explore how our products can enhance your operations.
We're here to help you find the perfect solution for your ranging needs. For inquiries, customization requests, or further information, please contact us at sales@eyoungtek.com. Our expert team is ready to assist you.
