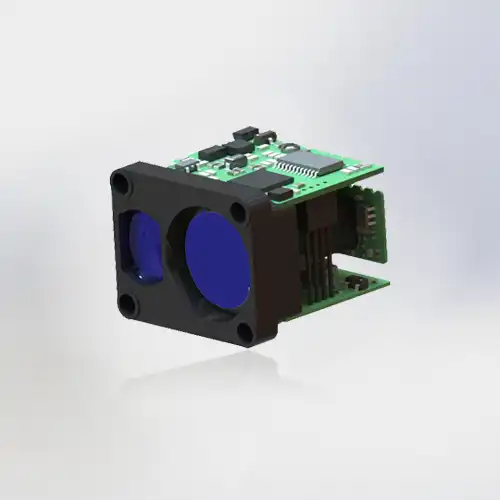

Lightweight Laser Rangefinder Module
Lasers with Eye safe wavelength;
Powered by Erbium Doped Glass Laser;
High reliability and cost performance;
Simple to install thanks to standard interfaces and compact design;
Dependable use in a wide range of harsh industrial environments;
Lightweight Laser Rangefinder Module Introduction
This Lightweight Laser Rangefinder Module designed by our company is suitable for products with medium and short distance ranging requirements. Its operating band is 1535nm, which is in the eye-safe band. It has an integrated design, strong impact resistance, high reliability, and stable performance; it adopts ultra-high sensitivity detection technology, with a volume of ≤50mm×36.5mm×24mm, a weight of ≤58g, and a standby power consumption of ≤0.5W. It can be powered off to achieve zero standby power consumption, and the measurable range is 15~3000m.
In the realm of precision measurement, the advent of the Lightweight Laser Rangefinder Module has revolutionized the way we perceive distance measurement. This cutting-edge technology combines portability with accuracy, offering a solution that is not only easy to use but also incredibly reliable. The Lightweight Laser Rangefinder Module is more than just a tool; it's a testament to the ingenuity of modern engineering, designed to cater to a wide array of industries where precision is paramount. Whether it's construction, surveying, robotics, or any field that demands exact measurements, this module is the go-to choice for professionals seeking efficiency without compromising on quality.
Technical Parameters
|
Items |
Index |
|
|
Laser wavelength |
1535±10nm |
|
|
Maximum range (m) |
Large target |
5500 |
|
|
Vehicle（2.3m×4.6m） |
3000 |
|
|
Human（0.5m×1.7m） |
2200 |
|
Minimum range (m) |
15 |
|
|
Ranging accuracy (m) |
±2 |
|
|
Size (L×W×H) (mm) |
≤50×36.5×24 |
|
|
Weight (g) |
≤58 |
|
|
Ranging frequency (Hz) |
Single time、1、5 |
|
|
Accuracy rate |
≥98% |
|
|
False alarm rate |
≤1% |
|
|
Multiple target detection (pc) |
2 |
|
|
Communication port |
RS422/TTL |
|
|
Supply voltage（V） |
4.8～8.4 |
|
|
Standby power consumption（W） |
≤0.5, power off to achieve zero stand-by power consumption |
|
|
Operating temperature（℃） |
-40～+60 |
|
Working Principle
Laser Emission: The module emits a laser beam that is directed towards the target object.
Time of Flight Measurement: The time it takes for the laser to travel to the object and back is measured.
Distance Calculation: Using the speed of light, the module calculates the distance based on the time of flight.
Data Processing: The collected data is processed to ensure accuracy and reliability.
Output Signal: The final calculated distance is transmitted as an output signal for various applications.
Technical Advantages
Speed of Light Technology: Utilizes the constant speed of light for quick and precise measurements.
Non-contact Measurement: Eliminates errors associated with physical contact during measurement.
Low Power Consumption: Operates on a 5V DC supply, making it energy efficient.
Wide Operating Temperature Range: Functions effectively in a variety of environmental conditions.
Highly Integrated Design: Combines multiple functionalities into a single, easy-to-use module.
Application Fields
Construction Sites: For measuring distances and heights in building projects.
Surveying and Mapping: Accurate land and property measurements.
Industrial Automation: Robotic guidance and obstacle detection in manufacturing.
Agricultural Technology: Precision farming and crop analysis.
Research and Development: Experimentation and data collection in scientific studies.
Quality Control and Safety Standards
ISO Certification: Adheres to international quality management standards.
Safety Compliance: Meets global safety regulations for laser equipment.
Reliability Testing: Undergoes rigorous testing for consistent performance.
Environmental Testing: Ensures functionality across different temperatures and conditions.
Traceability: Each module is traceable for quality assurance.
After-Sales Service
Warranty Coverage: Provides a comprehensive warranty for peace of mind.
Technical Support: Access to expert assistance for any operational issues.
Replacement Parts: Availability of spare parts for maintenance.
Software Updates: Regular updates to improve functionality and compatibility.
Customer Feedback: Actively listens to customer feedback for continuous improvement.
Contact US
Hainan Yiyang Technology is your trusted partner for all your measurement needs. With our Lightweight Laser Rangefinder Module, you're not just acquiring a product, but also entering into a relationship with a company that values quality, innovation, and customer service. For more information or to place an order, please contact us at photoelectric01@eyoungtec.com. Experience the difference with Hainan Yiyang Technology.
