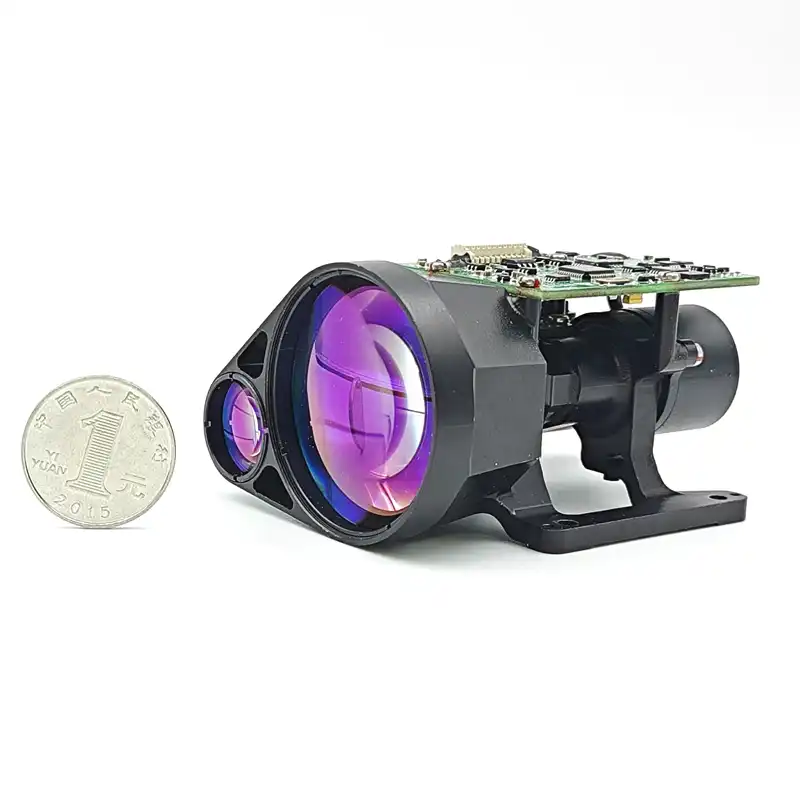

Laser Rangefinder Module For Electro Optical System
Laser type:erbium glass;
Laser wavelength:1535±10nm(eye safety);
Distance measurement range:80～9500m;
Ranging frequency (Hz)：Single time、1、5
Ranging accuracy:±1m;
Ranging resolution:0.1m;
Operating voltage:10V～14V;
Power consumption:standby power consumption≤1W, power off to achieve zero standby power consumption;
Volume:≤86.5mm×66.5mm×45.5mm;
Light weight:≤150g.
Laser Rangefinder Module For Electro Optical System Introduction
We are pleased to introduce the Laser Rangefinder Module for Optoelectronic Systems, a state-of-the-art device carefully designed for your specific needs. This module can achieve remote measurement, has level 1 safety protection for our human eyes, is lightweight, compact in size, very stable in performance, and has multi-pulse ranging function.Our commitment is to provide you with high-precision and reliable laser ranging solutions suitable for various application scenarios.
This module adopts cutting-edge technology, has excellent performance and stability, and is suitable for a wide range of fields such as military, industry, aerospace and so on. With our laser range finder module, precise distance measurement is possible, providing unwavering support for your projects and tasks.
Product Specification
|
Items |
Index |
|
|
Laser wavelength |
1535nm |
|
|
|
Large target |
12500 |
|
|
Vehicle（2.3m×4.6m） |
9500 |
|
|
Human（0.5m×1.7m） |
4500 |
|
Minimum range (m) |
80 |
|
|
Ranging accuracy (m) |
±1 |
|
|
Size (L×W×H) (mm) |
≤86.5×66.5×45.5 |
|
|
Weight (g) |
≤150 |
|
|
Ranging frequency (Hz) |
Single time、1、5 |
|
|
Precision ratio |
≥98% |
|
|
False alarm rate |
≤1% |
|
|
Multiple target detection (pc) |
2 |
|
|
Communication port |
RS422 |
|
|
Supply voltage (V) |
12±2 |
|
|
Standby power consumption (W) |
≤1W, power off to achieve zero standby power consumption |
|
|
Operating temperature |
-40～+60 |
|
Technical Features
Our Laser Rangefinder Module for Electro Optical System is equipped with advanced features to meet the demands of professional electro-optical applications. With high-precision laser technology, long-range measurement capabilities, and versatile interface options, it offers seamless integration and reliable performance in diverse environments.Its application scenarios are very wide and has the following advantages:
1. Integrated design, strong shock resistance capacity, high reliability and stable performance;
2. Ultra-high sensitivity detection technology adopted, small volume, light weight, and long measurement range.
Working Principle
The 9000m Rangefinder Module operates on the principle of time-of-flight (TOF) measurement using laser pulses. By emitting a laser beam towards the target and detecting the reflected signal, it calculates the distance based on the time taken for the round trip, ensuring accurate distance measurement in electro-optical systems.
Laser Rangefinder Module For Electro Optical System Application Fields
1. Handheld photoelectric device;
2. UAV mounting;
3. Electro-Optic Systems ;
4. Other scenario with ranging requirements.
Measurement Precautions
Ensure proper calibration of the module before use to maintain accuracy.
Keep the lens clean and free from dust or debris for optimal performance.
Handle the module with care to prevent damage to sensitive components.
