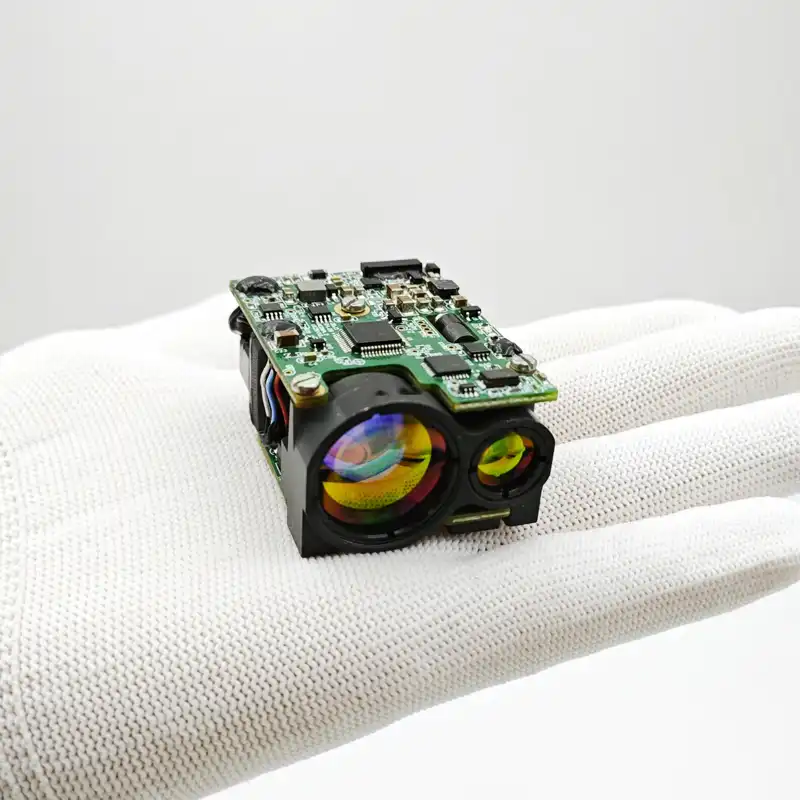

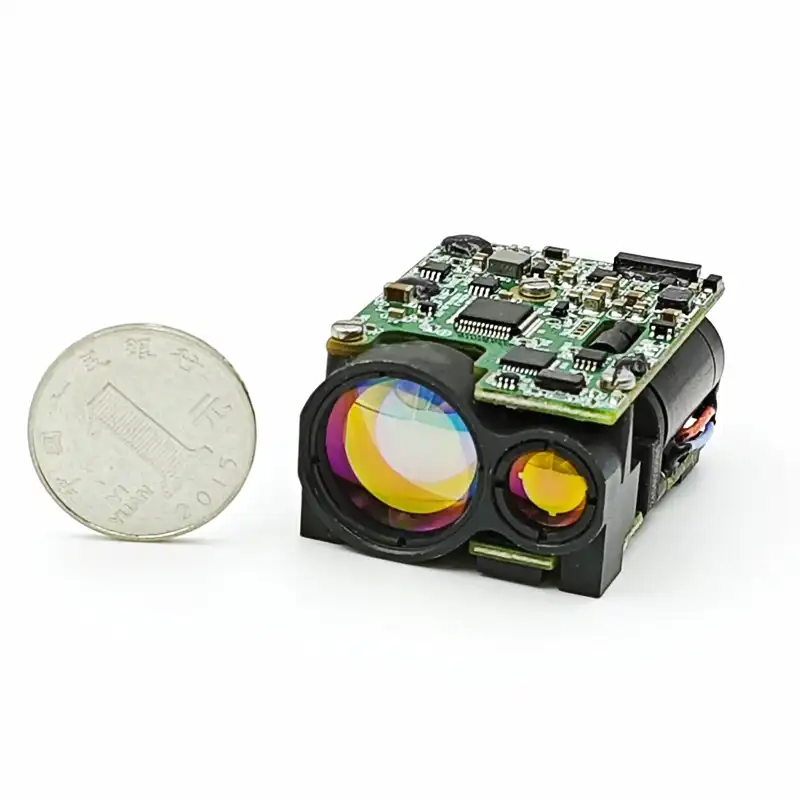

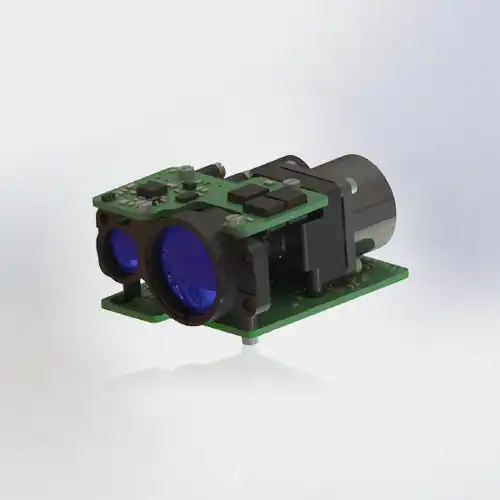

Erbium Glass Laser Rangefinder Module
Laser type:erbium glass;
Laser wavelength:1535±10nm(eye safety);
Distance measurement range:15～3000m;
Ranging frequency (Hz)：Single time、1、5
Ranging accuracy:±1m;
Operating voltage:10V～14V;
Power consumption:standby power consumption≤0.5W;
Pipe material:aluminum;
Volume:≤50mm×36.5mm×24mm;
Weight:≤58g;
Erbium Glass Laser Rangefinder Module Introduction
We specifically developed this Erbium Glass Laser Rangefinder Module for severe working situations. It is a very dependable and high-performing rangefinder. Maximum range (Vehicle): 3000m. The working wavelength of this product, which is 1535 nm, falls inside the eye-safe wave region.It can be used as ranging module that meet the need of short distance measurement and supports single, 1Hz, and 5Hz ranging.
Product Specification
|
Items |
Index |
|
|
Laser wavelength |
1535±10nm |
|
|
Maximum range (m) |
Large target |
5500 |
|
|
Vehicle（2.3m×4.6m） |
3000 |
|
|
Human（0.5m×1.7m） |
2200 |
|
Minimum range (m) |
15 |
|
|
Ranging accuracy (m) |
±2 |
|
|
Size (L×W×H) (mm) |
≤50×36.5×24 |
|
|
Weight (g) |
≤58 |
|
|
Ranging frequency (Hz) |
Single time、1、5 |
|
|
Precision ratio |
≥98% |
|
|
False alarm rate |
≤1% |
|
|
Multiple target detection (pc) |
2 |
|
|
Communication port |
RS422/TTL |
|
|
Supply voltage（V） |
4.8～8.5 |
|
|
Standby power consumption（W） |
≤0.5, power off to achieve zero stand-by power consumption |
|
|
Operating temperature |
-40～+60 |
|
Technical Features
Customization: OEM、ODM.
Erbium Glass laser technology for precise distance measurement.
Measurement capability up to 3,000 meters.
High accuracy with an error margin of ±1 meter.
Ranging resolution:0.1m.
Volume: ≤50mm×36.5mm×24mm.
Weight: ≤58g.
Compact and lightweight design for easy integration into various systems.
Low power consumption for extended battery life.
Working Principle
The Erbium Glass Laser Rangefinder Module emits laser pulses towards the target and measures the time it takes for the pulses to reflect back. By precisely calculating the time of flight of the laser pulses, the module determines the distance to the target with high accuracy.
Application Fields
Handheld photoelectric device: Erbium glass laser rangefinder modules can be incorporated into portable optoelectronic devices to offer consumers a high-precision, portable solution for measuring distance. The following applications are where this is especially helpful:
► Outdoor recreation: To improve navigation and planning skills, hikers and hunters can use the gadget to determine the distance to landmarks or possible hunting spots.
► Mapping and surveying: By using the module, surveyors can speed up data gathering by minimizing the need for heavy equipment and making quick, accurate measurements in the field.
UAV mounting: The Low-power Rangefinder module can greatly improve aerial operations when installed on Unmanned Aerial Vehicles (UAVs) by offering:
► Precision Agriculture: Automated plant height assessments and optimal pesticide or fertilizer delivery can be achieved by using UAVs to evaluate crop distance.
► Infrastructure Inspection: Using a drone to mount the module, inspectors may precisely gauge the separation between difficult-to-reach infrastructure, like towers, pipelines, and bridges, for safety inspections and maintenance.
Electro-Optic Systems : The Stable Laser Ranging Module special qualities, which meet the requirements of these cutting-edge optical technologies, have made it a valuable tool for Electro-Optic Systems (EOS). This is how it's used in this field:
► Enhanced Tracking Capabilities: The Erbium Glass Laser Rangefinder Module is perfect for electro-optic tracking systems because of its high peak power and stability. It offers accurate distance measurements, which are essential for long-distance monitoring of moving objects, particularly in military applications like fire control systems (FCS) and electro-optic tracking systems (EOTS).
► Applications in Air Defense: These rangefinders are very useful in air defense systems where it's critical to be able to determine distances to rapidly moving targets with precision. For these kinds of applications, the high firing rate of up to 15Hz makes it appropriate.
Other scenario with ranging requirements：The Erbium Glass Laser Rangefinder Module is also applicable in various other scenarios.
Suggestions
Optical Windows
Optical Coatings
Ensure proper calibration of the module before use.
Packaging and Delivery
Our Mid-long distance LRF Module are shock-proof, crash-proof and fall-proof in sealed packaging to ensure their integrity and safety during transportation. International transportation is generally air or express, can be flexible according to customer requirements, and ultimately ensure the complete delivery of products to customers.
FAQ
Q: Do you accept OEM&ODM?
A: Yes, we have our own team engaged in production and research and development.
