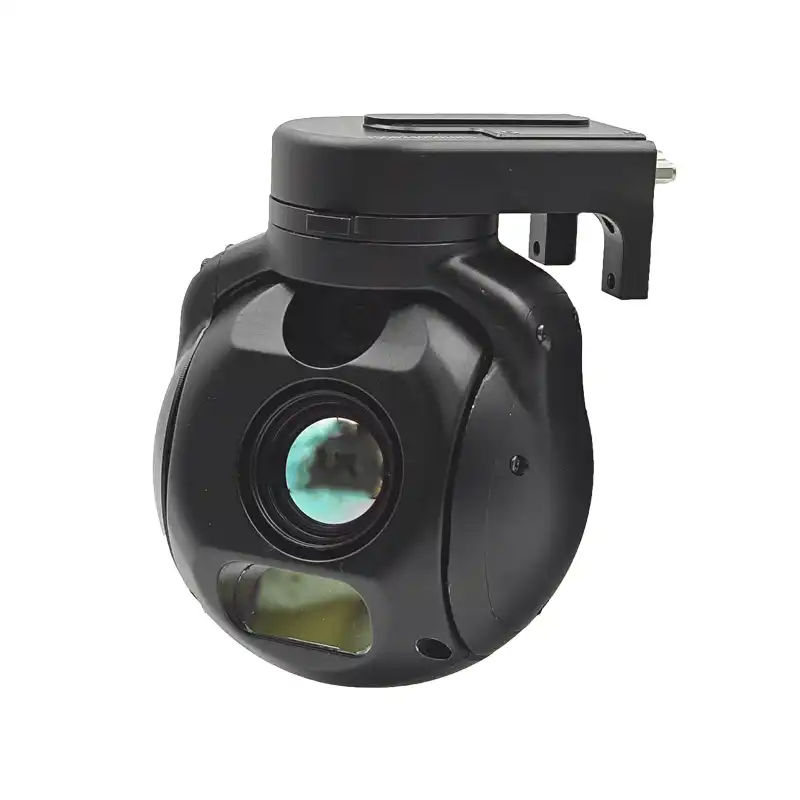

Airborne Electro Optical Pod
Ultra-small volume (≤Φ75mm×98mm) and ultra-light weight (≤320g)
Ultra-low power consumption, average power consumption ≤6W
With strong and light metal shell, it is suitable for all kinds of harsh environment.
With long wave infrared and visible light band detection ability, it can continuously output infrared images and visible light images in real time, and the picture is clear, smooth and stable.
With day and night imaging function, it can realize the detection, identification and tracking of the target throughout the day. Professional highly sensitive infrared thermal imaging makes mini targets clear at night.
Be able to automatically identify and track the target, and can resist natural interference
With laser ranging function, it can achieve high test accuracy and high stability.
Be able to withstand strong shocks
With self-check and fault reporting functions
The gyro operates stably during working period.

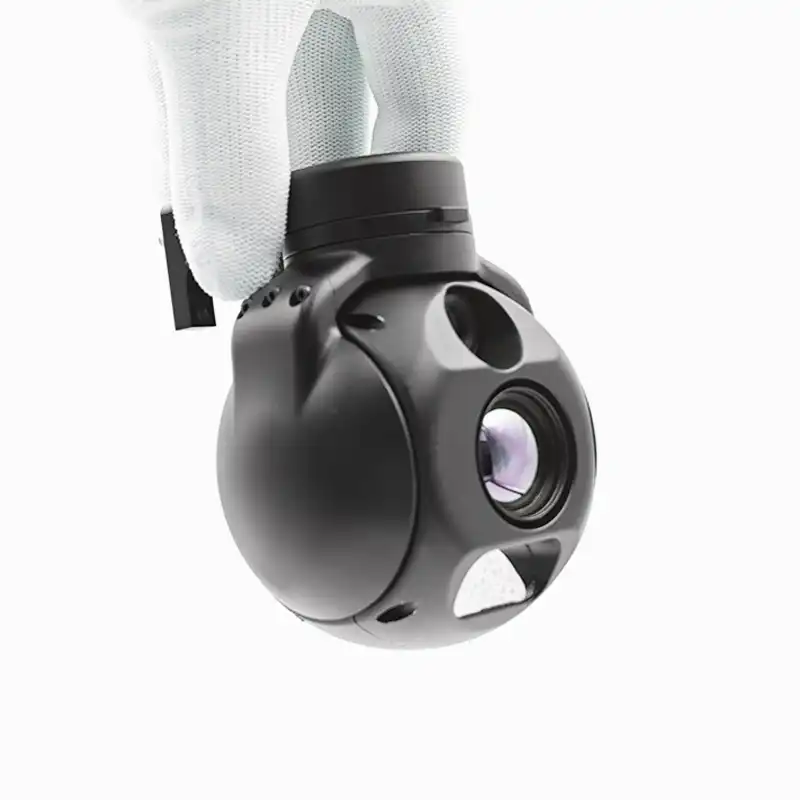

Airborne Electro Optical Pod Introduction
The Airborne Electro Optical Pod light camera, infrared thermal camera and laser rangefinder, which is mainly used for observing, identifying, capturing, tracking and ranging vehicles, personnel and other targets, and then reporting the image, angle and distance information of the target. It has the characteristics of light weight, high stable accuracy and high integration, and can be applied to UAV to complete the tasks of day and night reconnaissance, surveillance and target positioning in the target area.
The Airborne Electro Optical Pod, developed by Hainan Yiyang Technology, represents a cutting-edge aerial surveillance solution tailored for a variety of applications. This compact and versatile pod integrates advanced electro-optical technologies with precision engineering to deliver superior imaging and reconnaissance capabilities.
Hainan Yiyang Technology is a leading manufacturer of Airborne Stabilized Gimbal Camera, specializing in the design and production of advanced aerial surveillance systems.
Specification
|
No. |
item |
Indicators |
|
|
1 |
System Indicators
|
System Type |
Two-Axis Gyro-Stabilized |
|
2 |
Range of Motion |
Azimuth：-150°~+150°；Tilt：-100° ~ +40° |
|
|
3 |
Angle Measurement Accuracy |
≤0.3° |
|
|
4 |
Maximum Speed |
≥60°/s |
|
|
5 |
Maximum Angular Acceleration |
≥100°/s2 |
|
|
6 |
Infrared |
Resolution |
640×512@50fps |
|
7 |
Filed of View（focal length） |
17.5°×14.0（25mm） |
|
|
8 |
Visible Light
|
Resolution |
1920×1080@50fps |
|
9 |
Filed of View（focal length） |
19.7°×11.2°（16mm） |
|
|
10 |
Laser Rangefinder |
Measurement Range |
5m~1200m |
|
11 |
Ranging Accuracy |
±2m |
|
|
12 |
Tacking Module |
Maximum Frequency |
50Hz |
|
13 |
Tracking speed |
±48 px/fps |
|
|
14 |
Size |
≤Φ75mm×98mm； |
|
|
|
Weight |
≤320g |
|
|
15 |
Technical port |
1-way network video interface，1-way RS232 asynchronous serial port |
|
|
16 |
Power Supply |
14VDC~28VDC，average power consumption≤6W |
|
|
17 |
Environment Conditions |
Operating Temperature：-40℃~+55℃；Launch Shock：≥400g |
|
Technical Features
1. Ultra-small volume (≤Φ75mm×98mm) and ultra-light weight (≤320g)
2. Ultra-low power consumption, average power consumption ≤6W
3.With strong and light metal shell, it is suitable for all kinds of harsh environment.
4.With long wave infrared and visible light band detection ability, it can continuously output infrared images and visible light images in real time, and the picture is clear, smooth and stable.
5.With day and night imaging function, it can realize the detection, identification and tracking of the target throughout the day. Professional highly sensitive infrared thermal imaging makes mini targets clear at night.
6.Be able to automatically identify and track the target, and can resist natural interference
7.With laser ranging function, Airborne Electro Optical Pod can achieve high test accuracy and high stability.
8.Be able to withstand strong shocks
9.With self-check and fault reporting functions
10.The gyro operates stably during working period.
Application Fields
The Airborne Optoelectronic Pod can be applied to various UAVs to achieve reconnaissance and tracking of targets, as well as air patrol, traffic dredging, fire fighting, forest fire prevention, search and rescue, environmental monitoring, agricultural plant protection, smart city, power inspection and other fields.
Maintenance
Read the instructions carefully and follow the instructions. Clean and inspect the equipment regularly, such as cleaning the pod shell, cleaning the optical lens, etc. And regular maintenance of the integrated components of the system and camera components.
Packaging and Delivery
The Airborne Electro Optical Pods are shock-proof, crash-proof and fall-proof in sealed packaging to ensure their integrity and safety during transportation. International transportation is generally air or express, can be flexible according to customer requirements, and ultimately ensure the complete delivery of products to customers.
FAQ
Q: Can the technical parameters of the photoelectric pod be customized according to the actual situation of customers?
A: Yes, we can customize production according to customer requirements.
Q: Can the image of the photoelectric pod be recorded and transmitted in real time?
Yes, images and sounds are transmitted back and recorded in real time.
Q: Does the pod work in the rain
A: It can work normally in light rain.
After-sales Service
1. We will provide customers with product operation instructions and operation videos to ensure that customers can learn and operate the equipment correctly.
2. Within 15 days after receipt of the goods, the unused products with quality problems (defective appearance, damage, wrong delivery) can be returned or replaced, and we are responsible for the return and replacement freight.
3. Any products that show signs of use or have been installed will not be returned or exchanged.
4. For our VIP customers, we can centrally adjust and maintain the products in question within a certain period.
Contact us
Whether deployed for military missions, law enforcement operations, or aerial survey tasks, the Airborne Electro Optical Pod ensures exceptional performance and reliability in diverse airborne environments.With our self-operated factories and brand suppliers, we offer competitive pricing, reliable quality, and international certification. We provide OEM/ODM/OBM services and can customize solutions to meet the unique requirements of our customers. For inquiries or to explore our laser ranging module solutions, please contact us at photoelectric01@eyoungtec.com .
