Photoelectric Pods
Ultra-compact size (≤Φ64mm×85mm) and ultra-light weight (≤260g).
Ultra-low power consumption, with average power consumption≤6W.
With a metal shell, it is solid, portable and stable, adapting to various harsh environment.
Capable of detecting long-wave infrared light and visible light, and can constantly output infrared images and visible light images in real time, keeping the picture clear, smooth and stable.
With day and night imaging capabilities, it can detect, identify and track targets all day long via uncooled infrared thermal imager and visible light camera. Professional and highly sensitive infrared thermal imaging allows subtle detection of targets at night.
Capable of identifying and tracking targets, and it has the anti-interference ability.
It has high impact-resistance.
Equipped with self-checking and fault-reporting functions.
The gyro operates stably during operation.

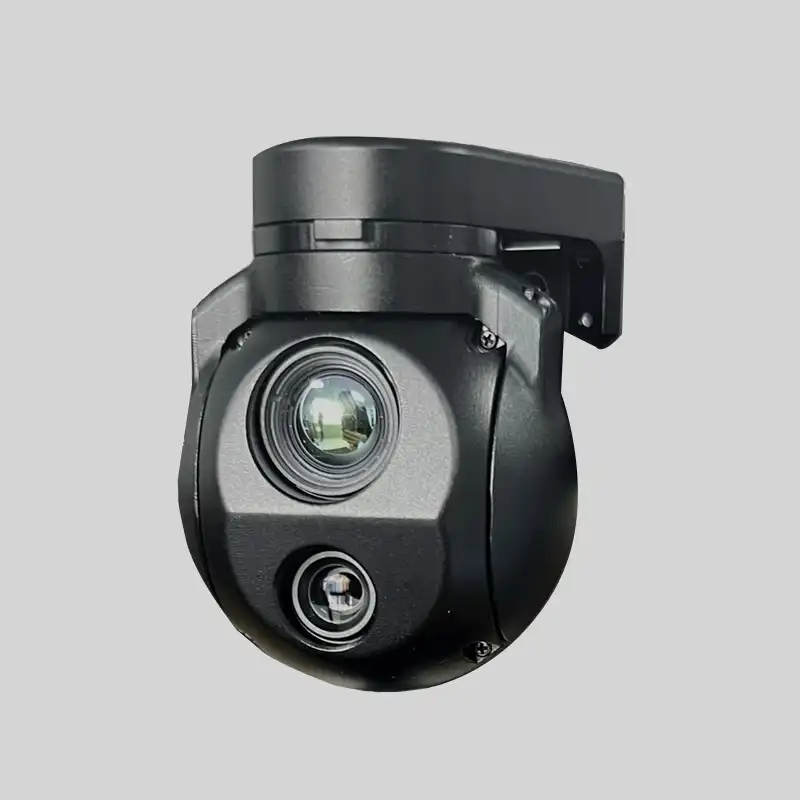

Photoelectric Pods Introduction
The Photoelectric Pods integrates visible light camera, infrared thermal imaging camera and other sensors. It is mainly used to observe, identify, capture and track ground aircraft, vehicles, people and other targets day and night, and report images and coordinate information of targets. It features on light weight, high stability, high accuracy and high integration, thus can be mounted on UAVs to complete tasks such as day and night observation, surveillance and positioning of target in target area.
The Photoelectric Pods, developed by Hainan Yiyang Technology, are advanced electro-optical devices designed for various surveillance and monitoring applications. These pods combine cutting-edge technology with precision engineering to deliver reliable performance in demanding environments. With their compact design and versatile features, Those are essential tools for security professionals and law enforcement agencies worldwide.
Specification
|
Serial number |
Items |
Index |
|
|
1 |
Infrared |
Detector |
640×512 Uncooled infrared |
|
2 |
Field of view (focal length) |
24.1°×19.4° (18mm) |
|
|
3 |
Operating distance |
Vehicles (4.6m×2.3m) recognizing distance:1.0km； |
|
|
4 |
Visible light |
Type of detector |
1920×1080 Color COMS camera |
|
5 |
Field of view (focal length) |
26.1°×14.8°(12mm) |
|
|
6 |
Operating distance |
Vehicles (4.6m×2.3m) recognizing distance:2.0km； |
|
|
7 |
Working angle range |
Azimuth angle：-150°~+150°；pitch angle：-90° ~ +30° |
|
|
8 |
Measuring precision of angle |
≤0.3° |
|
|
9 |
Maximum angular velocity |
≥60°/s |
|
|
10 |
Maximum angular acceleration |
≥100°/s2 |
|
|
11 |
Dimension |
Dimension: ≤Φ64mm×85mm； |
|
|
12 |
Weight |
≤260g |
|
|
13 |
Electrical interface |
1 network video interface, 1 RS232 asynchronous serial port |
|
|
14 |
Power supply |
14VDC~28VDC |
|
|
15 |
Power consumption |
Average power consumption≤6W |
|
|
16 |
Condition |
Operating temperature：-40℃～+55℃；launch shock：≥400g |
|
Technical Features
a. Ultra-compact size (≤Φ64mm×85mm) and ultra-light weight (≤260g).
b. Ultra-low power consumption, with average power consumption≤6W.
c. With a metal shell, it is solid, portable and stable, adapting to various harsh environment.
d. Capable of detecting long-wave infrared light and visible light, and can constantly output infrared images and visible light images in real time, keeping the picture clear, smooth and stable.
e. With day and night imaging capabilities, it can detect, identify and track targets all day long via uncooled infrared thermal imager and visible light camera. Professional and highly sensitive infrared thermal imaging allows subtle detection of targets at night.
f. Capable of identifying and tracking targets, and it has the anti-interference ability.
g. Photoelectric Pods has high impact-resistance.
h. Equipped with self-checking and fault-reporting functions.
i. The gyro operates stably during operation.
Application Fields
The Photoelectric Pods can be applied to various UAVs to achieve reconnaissance and tracking of targets, as well as air patrol, traffic dredging, fire fighting, forest fire prevention, search and rescue, environmental monitoring, agricultural plant protection, smart city, power inspection and other fields.
Maintenance
Read the instructions carefully and follow the instructions. Clean and inspect the equipment regularly, such as cleaning the pod shell, cleaning the optical lens, etc. And regular maintenance of the integrated components of the system and camera components.
Packaging and Delivery
Our Electro Optical pods are shock-proof, crash-proof and fall-proof in sealed packaging to ensure their integrity and safety during transportation. International transportation is generally air or express, can be flexible according to customer requirements, and ultimately ensure the complete delivery of EO/IR Sensor Camera to customers.
FAQ
Q: Can the technical parameters of the photoelectric pod be customized according to the actual situation of customers?
A: Yes, we can customize production according to customer requirements.
Q: Can the image of the photoelectric pod be recorded and transmitted in real time?
Yes, images and sounds are transmitted back and recorded in real time.
Q: Does the Electro-optical Payload work in the rain
A: It can work normally in light rain.
After-sales Service
1. We will provide customers with product operation instructions and operation videos to ensure that customers can learn and operate the equipment correctly.
2. Within 15 days after receipt of the goods, the unused products with quality problems (defective appearance, damage, wrong delivery) can be returned or replaced, and we are responsible for the return and replacement freight.
3. Any products that show signs of use or have been installed will not be returned or exchanged.
4. For our VIP customers, we can centrally adjust and maintain the products in question within a certain period.
Conclusion
Photoelectric Pods from Hainan Yiyang Technology offer advanced surveillance capabilities for a wide range of applications. With their long-range detection, high-definition imaging, and versatile features, these pods are the ideal choice for security professionals seeking reliable monitoring solutions. For inquiries or to learn more about our products, please contact us at photoelectric01@eyoungtec.com.
