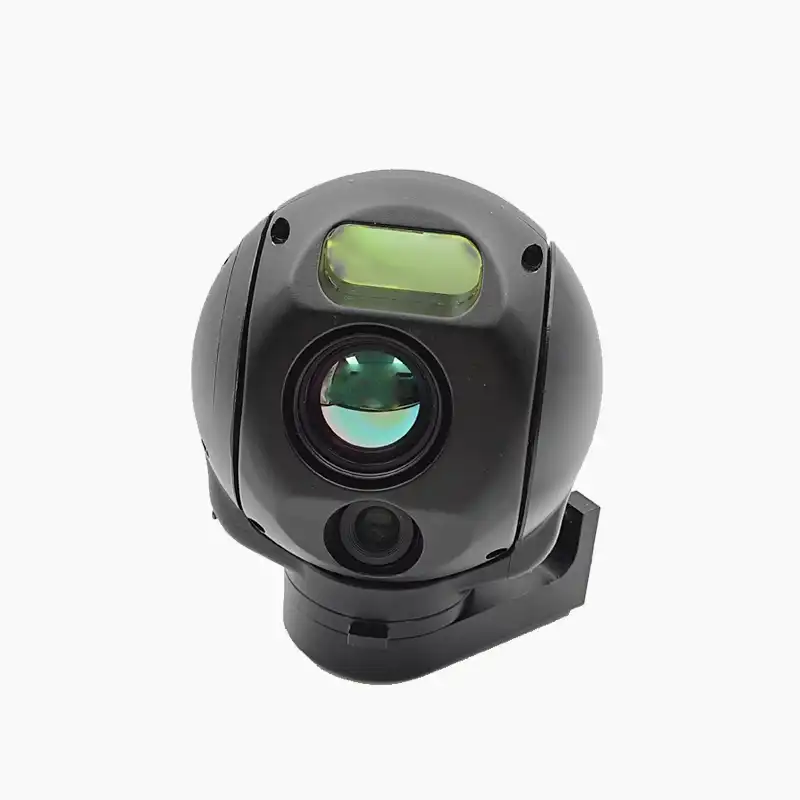

Three-sensor Photoelectric Pod

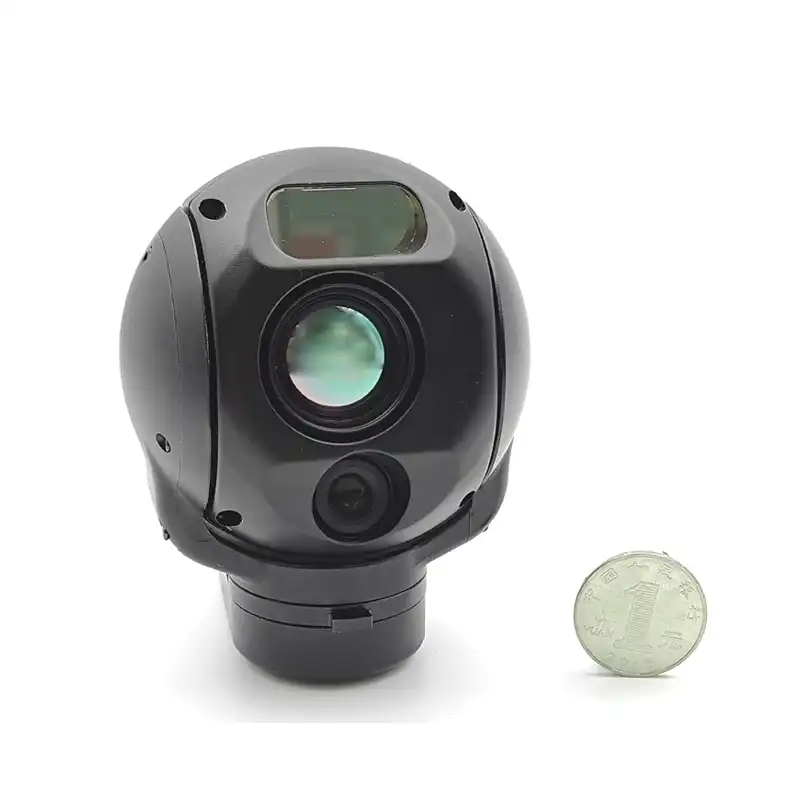

Small size (≤Φ75mm×98mm).
With a metal shell, it is solid and portable, adapting to various harsh environment.
With day and night imaging capabilities, it can detect, identify and track targets all day long via infrared thermal imager and visible light camera.
Capable of identifying targets automatically, and it has the ability of multi-mode tracking, identifying targets and anti-interference.
It has high impact-resistance.
Equipped with self-checking and fault-reporting functions.
Electro Optical System Introduction

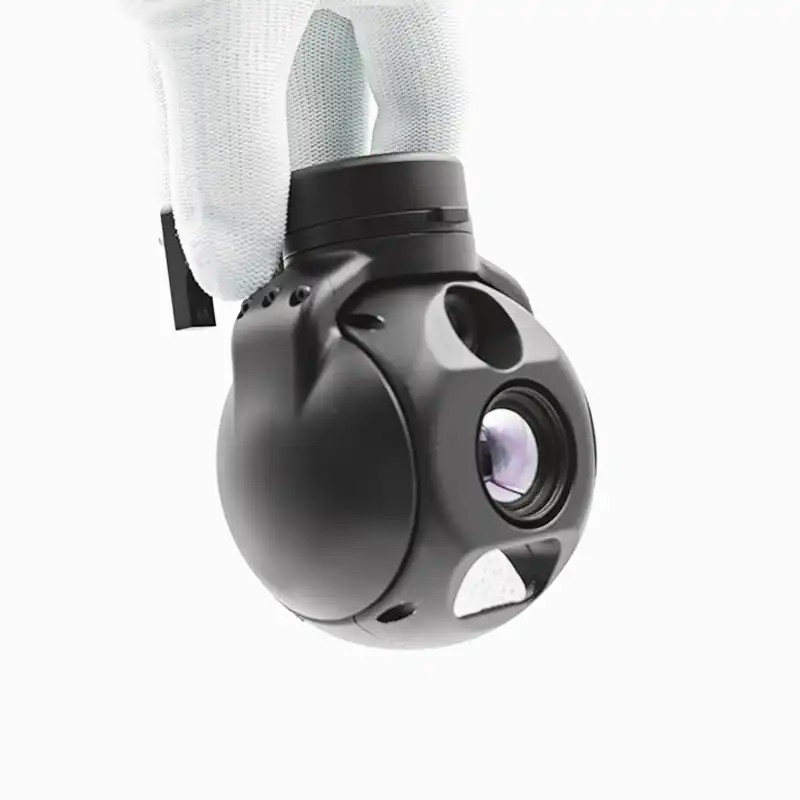

The Electro Optical System, developed by Hainan Yiyang Technology, is an advanced optical sensing solution designed for a wide range of applications. The micro three-light drone gimbal integrates optical camera, infrared thermal imaging camera and laser rangefinder. It is mainly used to observe, identify, capture, track and range vehicles, people and other targets, and report images, angle and distance information of targets.
It features on light weight, high stability, high accuracy and high integration, thus can be mounted on UAVs to complete tasks such as day and night observation, surveillance and positioning of targets in target area.With its compact design, robust construction, and versatile functionalities, the Electro Optical System of Hainan Yiyang delivers reliable performance in diverse environments and applications.
Specification
|
No. |
Item |
Parameters |
|
|
1 |
System Characteristic |
System Type |
Two-Axis Gyro-Stabilized |
|
2 |
|
Range of Motion |
Azimuth angle：-150°~+150°； Pitch angle：-100° ~ +40° |
|
3 |
|
Angle Measurement Accuracy |
≤0.3° |
|
4 |
|
Maximum Speed |
≥60°/s |
|
5 |
|
Maximum Angular Acceleration |
≥100°/s2 |
|
6 |
Infrared Sensor |
Resolution |
640×512@50fps |
|
7 |
|
Filed of View（focal length） |
17.5°×14.0（25mm） |
|
8 |
Visible Light Camera |
Resolution |
1920×1080@50fps |
|
9 |
|
Filed of View（focal length） |
19.7°×11.2°（16mm） |
|
10 |
Laser Rangefinder |
Measurement Range |
5m~1200m |
|
11 |
|
Ranging Accuracy |
±2m |
|
12 |
Tracking Module |
Maximum Frequency |
50Hz |
|
13 |
|
Tracking velocity |
±48 px/fps |
|
14 |
Size |
≤Φ75mm×98mm； |
|
|
15 |
Weight |
≤320g |
|
|
16 |
Technical port |
1 network video interface， 1 RS232 asynchronous serial port |
|
|
17 |
Power Supply |
14VDC~28VDC，average power consumption≤6W |
|
|
18 |
Environment Conditions |
Operating Temperature：-40℃~+55℃；Launch Shock：≥400g |
|
Technical Features
a. Small size (≤Φ75mm×98mm).
b. With a metal shell, it is solid, portable and stable, adapting to various harsh environment.
c. With long wave infrared and visible light band detection ability, it can continuously output infrared images and visible light images in real time, and the picture is clear, smooth and stable.
d. With day and night imaging function, it can realize the detection, identification and tracking of the target throughout the day. Professional highly sensitive infrared thermal imaging makes mini targets clear at night.
e. Automatically identify and track the target, and can resist natural interference.
f. Capable of range finding up to 1200m with high precision.
g. It has high impact-resistance.
h. Equipped with self-checking and fault-reporting functions.
i. The gyro operates stably during operation.
Electro Optical System Application Fields
The Electro Optical System can be applied to various UAVs to achieve reconnaissance and tracking of targets, as well as air patrol, traffic dredging, fire fighting, forest fire prevention, search and rescue, environmental monitoring, agricultural plant protection, smart city, power inspection and other fields.
Maintenance
Read the instructions carefully and follow the instructions. Clean and inspect the equipment regularly, such as cleaning the pod shell, cleaning the optical lens, etc. And regular maintenance of the integrated components of the system and camera components.
Packaging and Delivery
Our Electro-optical Camera are shock-proof, crash-proof and fall-proof in sealed packaging to ensure their integrity and safety during transportation. International transportation is generally air or express, can be flexible according to customer requirements, and ultimately ensure the complete delivery of UAV Gimbal Camera to customers.
FAQ
Q: Can the technical parameters of the photoelectric pod be customized according to the actual situation of customers?
A: Yes, we can customize production according to customer requirements.
Q: Can the image of the photoelectric pod be recorded and transmitted in real time?
Yes, images and sounds are transmitted back and recorded in real time.
Q: Does the pod work in the rain
A: Electro Optical System can work normally in light rain.
After-sales Service
1. We will provide customers with product operation instructions and operation videos to ensure that customers can learn and operate the equipment correctly.
2. Within 15 days after receipt of the goods, the unused products with quality problems (defective appearance, damage, wrong delivery) can be returned or replaced, and we are responsible for the return and replacement freight.
3. Any products that show signs of use or have been installed will not be returned or exchanged.
4. For our VIP customers, we can centrally adjust and maintain the Two-axis Stabilized Gimbal in question within a certain period.
