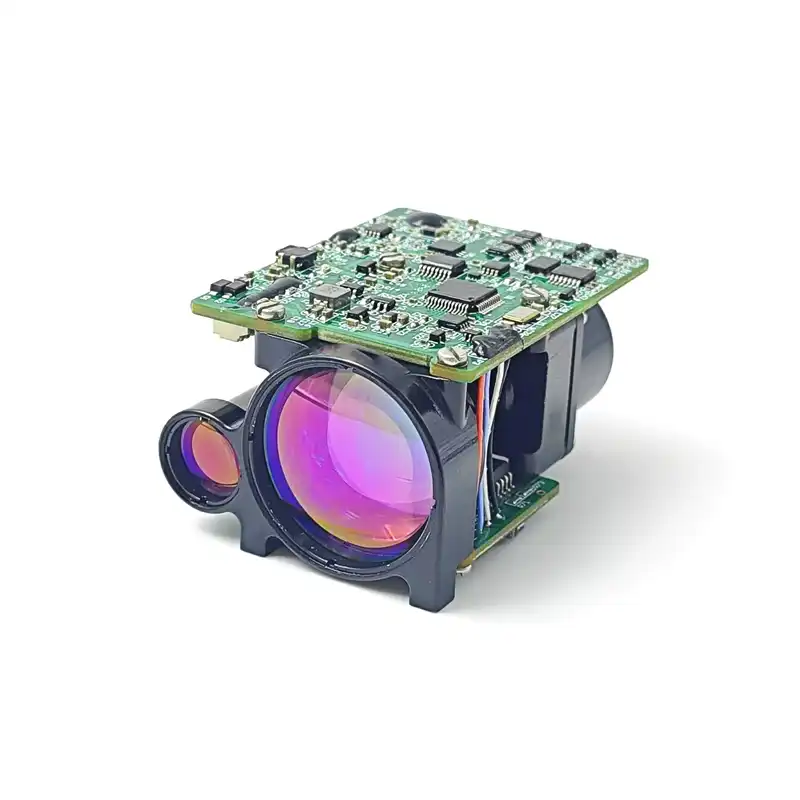

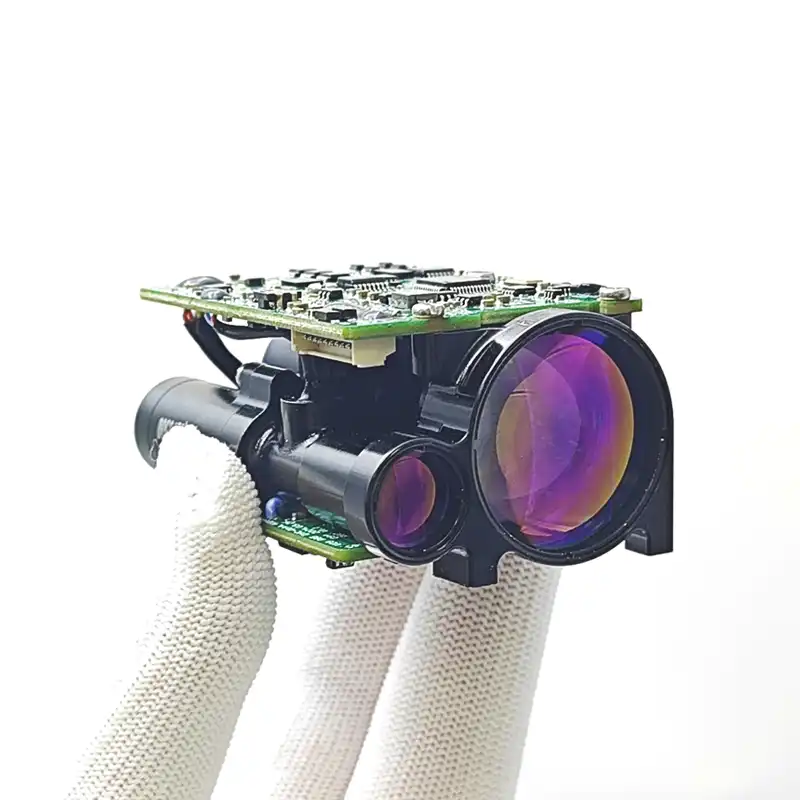

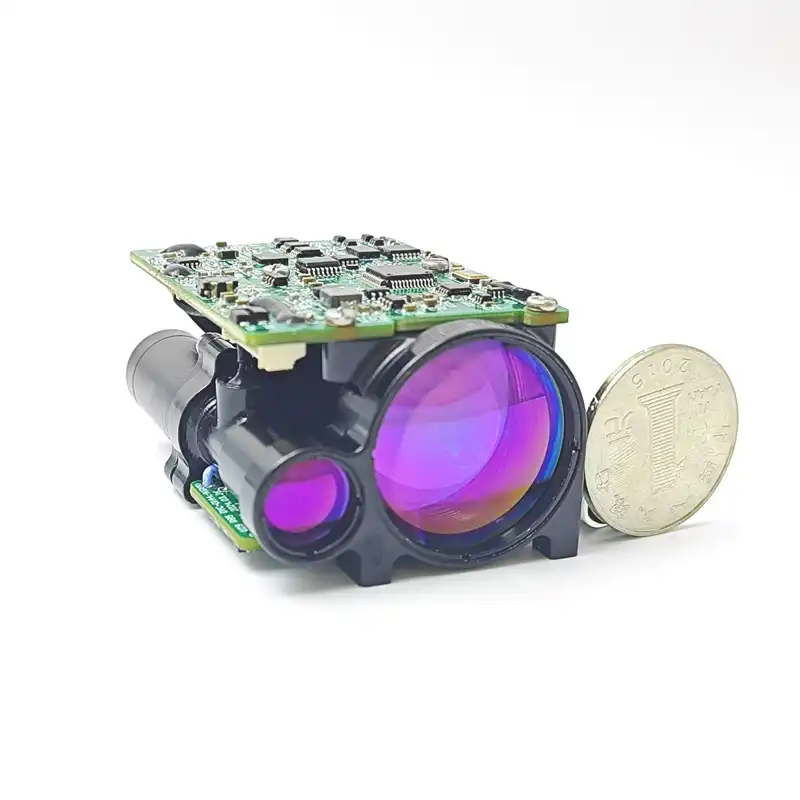

5KM Laser Range Finding Module
Cuboid configuration of 61×43×32mm;
Stable range finding capability for drone gimbal integration;
Capable of dectecing human (0.5m×1.7m) within 3000m;
The ranging error is within 1 meter;
Customizable mounting interface for customer's need.
Introduction
Precision measurement is crucial in numerous applications, from surveying and construction to defense and industrial automation. Our new 5km Laser Range Finding Module (5001A) delivers exceptional accuracy and reliability in a remarkably compact and lightweight design, ideal for a wide range of demanding environments. This Erbium glass laser rangefinder utilizes cutting-edge technology to provide highly accurate distance measurements over impressive ranges. Discover how this powerful tool can enhance your workflows and improve efficiency.
Product Advantages
This product offers a compelling combination of features:
Exceptional Accuracy: Achieve ±1 meter accuracy in your distance measurements, ensuring reliable data for your applications.
Compact Design: The module's small size and light weight (≤85g) make it incredibly portable, perfect for integration into handheld devices, UAVs, and other platforms.
High Reliability: Built with a robust aluminum housing and an integrated design, this module withstands harsh conditions, offering dependable performance in diverse environments.
Eye-Safe Technology: The 1535nm laser wavelength ensures safe operation without the risks associated with higher-powered lasers.
Versatile Ranging Options: Choose from single-time, 1Hz, and 5Hz ranging modes to optimize your measurement needs.
Long Measurement Range: The module boasts a remarkable measurement range of 50 to 8500 meters, enabling precise measurements in various scenarios.
Low Power Consumption: Standby power consumption is exceptionally low (≤1.8W), minimizing energy use and maximizing operational time.
Technical Features
This 5km Laser Range Finding Module boasts a range of advanced technical features:
|
Items |
Index |
|
|
Laser wavelength |
1535nm |
|
|
Maximum range (m) |
Large target |
8500 |
|
Vehicle（2.3m×4.6m） |
5300 |
|
|
Human（0.5m×1.7m） |
3000 |
|
|
Minimum range (m) |
50 |
|
|
Ranging accuracy (m) |
±1 |
|
|
Size (L×W×H) (mm) |
≤61×43×32 |
|
|
Weight (g) |
≤85 |
|
|
Ranging frequency (Hz) |
Single time、1、5 |
|
|
Accuracy rate |
≥98% |
|
|
False alarm rate |
≤1% |
|
|
Multiple target detection (pc) |
2 |
|
|
Communication port |
RS422 |
|
|
Supply voltage (V) |
12±2 |
|
|
Standby power consumption (W) |
≤1.8W, power off to achieve zero standby power consumption |
|
|
Operating temperature |
-40～+60 |
|
Product Application
The 5km Laser Range Finding Module finds applications across various industries:
Surveying and Construction: Precise distance measurement for construction projects and land surveying.
UAV (Unmanned Aerial Vehicles): Integration into UAVs for precise mapping and environmental monitoring.
Defense Applications: Critical for range finding in military and security operations.
Industrial Automation: Measurement for automated processes and machinery control.
Robotics: Enabling robots with precise distance sensing capabilities.
Quality Control and Safety Standards
Our 5km Laser Range Finding Module undergoes stringent quality control measures to guarantee exceptional reliability. We comply with strict safety standards, including eye safety protocols for the 1535nm laser wavelength, ensuring user safety. Designed to endure harsh conditions, the module delivers consistent performance in various environments, making it an ideal choice for applications that demand durability and accuracy.
Warranty and Customization
We give a 1-year guarantee to the 5001A module, guaranteeing your trust in our item's quality and execution. Furthermore, we offer OEM and ODM customization choices to fit the module to your particular necessities, permitting you to accomplish the exact usefulness and determinations expected for your applications. Your fulfillment is our need.
FAQ
Q: What is the maximum measurement range for this module?
A: The maximum range is 5300 meters for a vehicle (2.3m x 4.6m) target. Maximum range for large targets is 8500m.
Q: What is the power consumption of the module?
A: Standby power consumption is ≤1.8W. The module powers down to achieve zero standby power consumption.
Q: What is the size and weight of the module?
A: The module measures ≤61mm x 43mm x 32mm and weighs ≤85g.
Q: What communication port does the module use?
A: The module utilizes the RS422 communication port.
