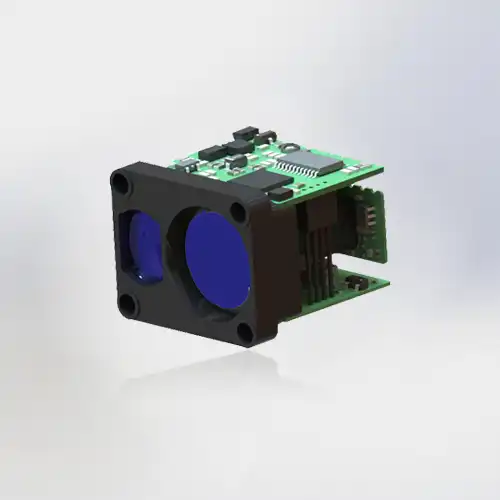

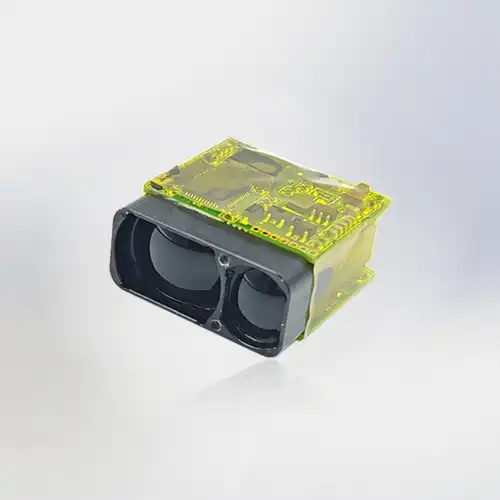

Long Range Rangefinder Module
Self-developed by Eyoung Tech;
Mid-long range capability for vehicles; Robust design, high impact resistance, stable performance;
Continuous measurement rates up to 5Hz
Introduction
The Long Range Rangefinder Module is an exemplary device designed for those seeking a combination of precision, portability, and efficiency in distance measurement technology. With its small volume and light weight of just 80g(or even<80g), this module is incredibly easy to transport and integrate into various systems, such as UAVs, robotics, and automotive applications.This module is crafted with an erbium glass laser that operates at a wavelength of 1535±10nm, which is safe for the eyes, ensuring that it can be used in diverse environments without posing a risk to users.
The ranging accuracy is highly reliable at ±1m, with a ranging resolution of 0.1m, allowing for detailed and fine-grained distance measurements. It supports various measurement modes, including single time, 1 Hz, and 5 Hz ranging, providing flexibility for different operational requirements.The module is designed with low power consumption, with a stand-by power consumption of ≤0.1W, and it can achieve zero stand-by power consumption when powered off, making it an energy-efficient solution for applications where power conservation is critical.
It support OEM and ODM , allowing the module to be tailored to specific project requirements. Constructed with an aluminum pipe material, the module is both durable and lightweight, with dimensions of ≤56mm×50mm×30mm, fitting seamlessly into compact spaces.
Specifications
parameter |
value |
|
Laser wavelength |
1535nm |
|
Maximum range (m) |
Large target(bulidings) |
6000 |
|
vehicle(2.3m×4.6m) |
4000 |
|
human(0.5m×1.7m) |
2500 |
Minimum range (m) |
50 |
|
Precision (m) |
±1 |
|
Size(L×W×H)(mm) |
≤56×50×30 |
|
Weight (g) |
≤80 |
|
Ranging frequency (Hz) |
Single time、1、5 |
|
Range accuracy |
≥98% |
|
False alarm rate |
≤1% |
|
Multiple target detection (pc) |
2 |
|
Communication port |
RS232 |
|
Supply voltage (V) |
12±2 |
|
Stand-by power consumption (W) |
≤0.1,zero power consumption with power off |
|
Operating temperature(℃) |
-40~+60 |
Technical Advantages
Long-Range Capability: Ideal for applications requiring long-distance measurement without loss of accuracy.
Versatile Communication: Easy integration with existing systems through multiple interface options.
Low Power Consumption: Designed for energy efficiency, suitable for remote or battery-operated applications.
High Environmental Tolerance: Maintains performance in extreme temperatures and weather conditions.
Application Fields
1.Handheld Optical Measurement Device:
In handheld devices, the Module serves as a compact and reliable solution for on-the-go distance measurements. It integrates seamlessly into devices used for outdoor navigation, hunting, or surveying, providing users with accurate ranging capabilities within a span of 50 to 4000 meters. Its lightweight and small form factor make it an ideal choice for portable measurement tools that require high precision and ease of use.
2.UAV Mounted:
When mounted on Unmanned Aerial Vehicles (UAVs), this module enhances the capabilities of drones for applications such as aerial surveying, mapping, and reconnaissance. It allows drones to measure distances to the ground or objects with high accuracy, which is invaluable for creating 3D models, assessing terrain features, and conducting search and rescue operations.
3. Mini Pod:
In a mini pod system, which could be part of a larger automated or robotic setup, the Long Range Rangefinder Module provides precise distance data that can be used for collision avoidance, object detection, and navigation. Its small size and low power consumption make it suitable for compact systems where space and energy efficiency are at a premium.
4. Other Scenarios with Ranging Requirements:
The Module's versatility, accuracy, and reliability make it a preferred choice for any application where the measurement of distance is key to success. Whether in the hands of a surveyor, mounted on a UAV, integrated into a mini pod, or serving in any other scenario with ranging needs, this module delivers consistent performance.
Operation and Maintenance
Power On: Activate the module by connecting it to a power source.
Measurement Initiation: Begin the measurement process by triggering the laser pulse.
Regular Calibration: Periodically calibrate the module to maintain measurement accuracy.
Maintenance Checks: Conduct routine checks for wear and tear or potential malfunctions.
Quality Control and Safety Standards
Safety Compliance: All modules are tested to meet international safety standards for laser equipment.
Reliability Testing: Each module undergoes stringent testing to ensure long-term reliability.
Quality Assurance Protocols: A comprehensive set of quality checks is implemented throughout the manufacturing process.
Continuous Improvement: A commitment to refining processes and products based on feedback and technological advancements.
After-Sales Service
Our products by Hainan Yiyang Technology is supported by an extensive after-sales service program designed to ensure your complete satisfaction and peace of mind. Here's what you can expect from our customer care:
Customer Support: Benefit from our responsive technical support team, ready to assist you with any inquiries or troubleshooting needs. Our experts are well-versed in the Range Rangefinder Module and are committed to providing timely and effective solutions.
Warranty Program: Each module is backed by a robust warranty that covers defects in materials and workmanship for a period of one year from the date of purchase. This warranty is a testament to the quality and reliability we build into every module.
Training and Education: We offer comprehensive training sessions and educational resources to help you maximize the use of your Module. Whether you're looking for guidance on installation, operation, or advanced features, our materials are designed to empower you with the knowledge you need.
Feedback Mechanism: We actively seek and value customer feedback. Your insights are crucial for our continuous improvement, and we've created multiple channels for you to share your experiences and suggestions with us.
Customized Service: With our OEM and ODM capabilities, we can provide tailored services to meet specific requirements or preferences you may have for your Module.
Dedicated Account Management: For our enterprise clients, we offer dedicated account management to ensure personalized service and support throughout your partnership with us.
Software Updates and Upgrades: Stay current with the latest firmware and software updates designed to enhance the performance and capabilities of your module.
Replacement Parts: Quick access to replacement parts ensures minimal downtime, allowing you to maintain the operational efficiency of your Range Rangefinder Module.
Proactive Maintenance: We believe in proactive care, which is why we offer regular maintenance checks to prevent potential issues before they arise.
